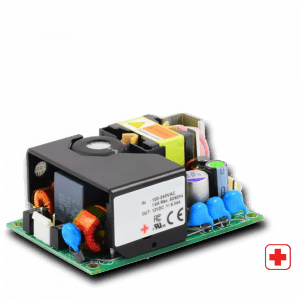

ML100 AC-DC
100W medical-grade open-frame AC-DC power supply featuring 2xMOPP isolation, active power factor correction, and fanless convection cooling. Delivers up to 92% efficiency in an ultra-compact form factor with an extended temperature range.
Key specifications
ML100 AC-DC at a glance.
Output power
100W
Efficiency
Up to 92%
Dimensions
2.00" x 3.00" x 1.16"
MTBF
790,000 hours
Electrical specifications
Safety and environmental
Warranty
Three-year standard warranty
RoHS compliant. Confirm certifications with current datasheets.
Documents
Datasheets & product specs.
Datasheets
Product specs
Features
What sets the ML100 AC-DC apart.
Medical-grade 2xMOPP isolation (4,000 VAC)
Active power factor correction
Convection cooled — no fan required
Built-in EMI filter
Low-leakage design (<75 uA)
Adjustable output voltage (+/-10%)
Extended operating temperature range
