Power supply product lineup.
20+ standard AC-DC and DC-DC power supply families from 40W to 750W. Open-frame, U-frame, enclosed, and ATX configurations with medical-grade and industrial certifications.
40-100 Watt
Ultrasmall open-frame power in a 2" x 3" footprint.
Compact open-frame AC-DC power supplies delivering 40-100W with convection cooling at full power. Available in industrial (XL) and medical-grade (ML) variants with 2xMOPP isolation. All units feature built-in EMI filters, adjustable outputs, and DC input support.
- All units fit a 2.00" x 3.00" x 1.16" footprint
- Convection cooled at full power — no fan required
- Medical variants: 4,000 VAC (2xMOPP) isolation
- Industrial variants: 3,000 VAC reinforced isolation
- Operating temperature: -40 to +85 C
- MTBF up to 3,010,000 hours
ML40 AC-DC
Medical40W | Up to 93.5%
Medical-grade 40W with 2xMOPP isolation.
View specifications >

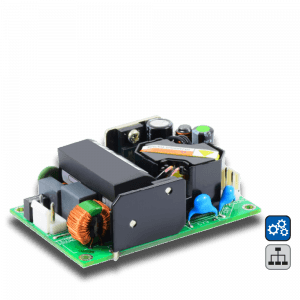

XL40 AC-DC
40W | Up to 93%
Compact 40W for industrial and ITE environments.
View specifications >

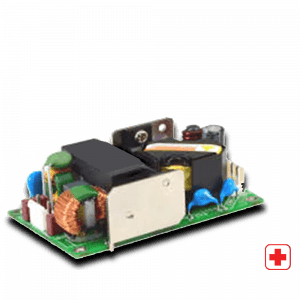

ML65 AC-DC
Medical65W | Up to 93.5%
Medical 65W with dual output configurations.
View specifications >
XL65 AC-DC
65W | Up to 93.5%
High-efficiency 65W with 93.5% efficiency.
View specifications >

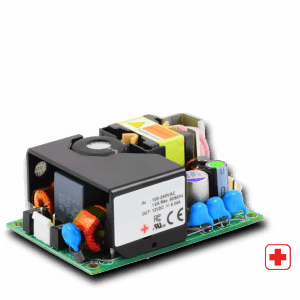

ML100 AC-DC
Medical100W | Up to 92%
Medical 100W with active PFC and 2xMOPP.
View specifications >

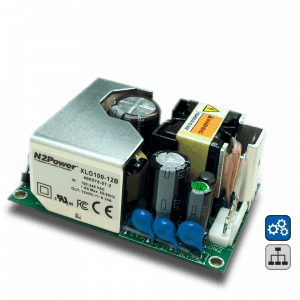

XL100 AC-DC
100W | Up to 92%
100W industrial workhorse with DC input support.
View specifications >

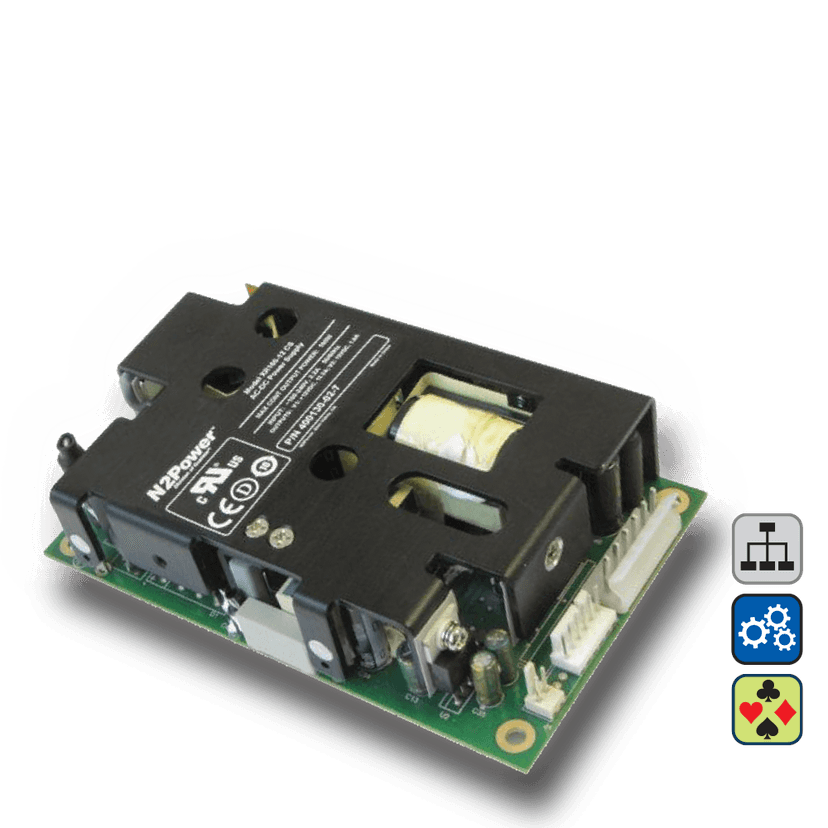

125-180 Watt
Mid-range power with N+1 redundancy and sub-1U profiles.
Mid-range AC-DC power supplies from 125-180W with active PFC and optional N+1 redundancy. The XR series delivers high density in a 3" x 5" sub-1U footprint with current sharing, while the XL180 achieves 94% efficiency in a compact open frame. ATX-format options available.
- XR series: 3.00" x 5.00" sub-1U footprint
- Built-in ORing MOSFET for N+1 redundancy (optional)
- Active Power Factor Correction across all models
- Up to 94% efficiency (XL180)
- Power density up to 8.5 W/cu in
- Single-wire current sharing on most models
XR125 AC-DC
125W | Up to 91%
Sub-1U 125W with N+1 redundancy and active PFC.
View specifications >

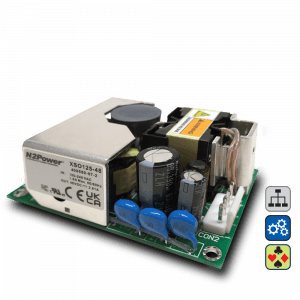

XS125 AC-DC
125W | Up to 92%
125W with conformal coating option for harsh environments.
View specifications >

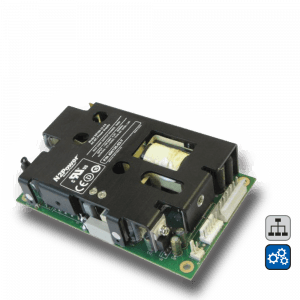

XR125 RE AC-DC
125W | Up to 91%
125W with remote enable and current sharing.
View specifications >
XR ATX AC-DC
125-160W | Up to 84%
ATX-format power for computing and industrial systems.
View specifications >

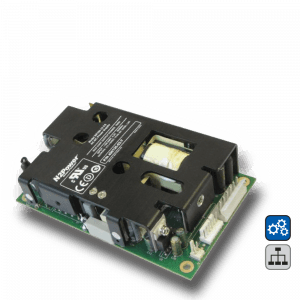

XR160 RE AC-DC
160W | Up to 91%
160W compact with 8.5 W/cu in density.
View specifications >

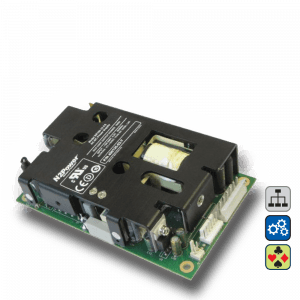

XR160 AC-DC
160W | Up to 91%
160W with PoE compliance and parallelable outputs.
View specifications >
XL180 AC-DC
180W | Up to 94%
180W with 94% efficiency — fanless at full power.
View specifications >

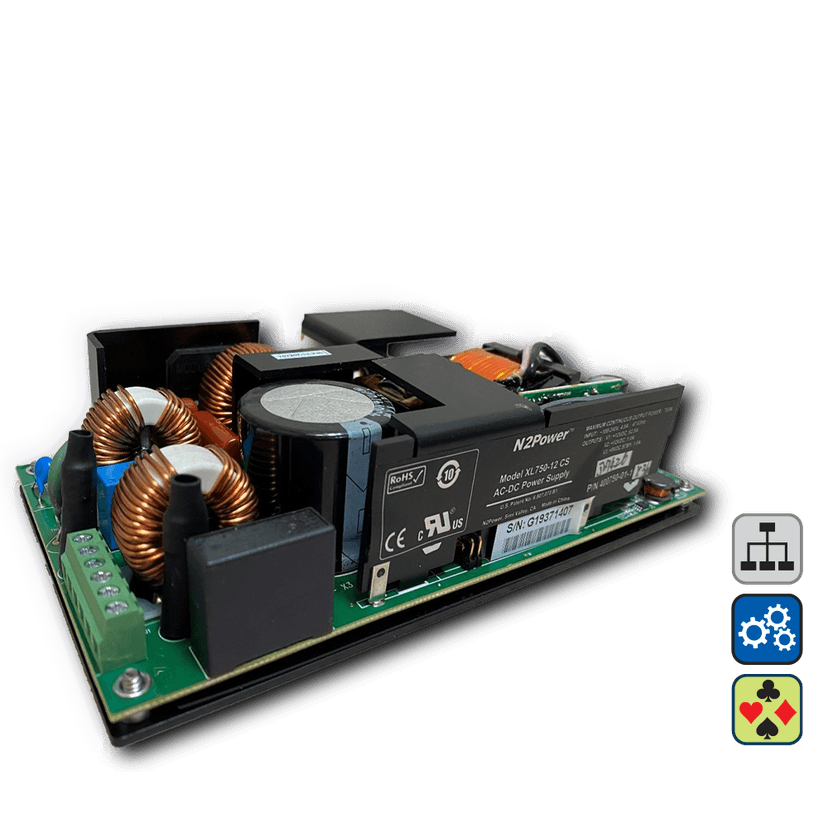

240-750 Watt
High-density power with medical certifications and digital management.
High-power AC-DC and DC-DC solutions from 240-750W with digital management options, medical-grade certifications, and active current sharing. Features I2C/PMBus on the flagship XL750, EN 60601 compliance on medical units, and power densities exceeding 15 W/cu in.
- Medical-grade: EN 60601-1-2 4th edition (XLM240, XLM500)
- I2C/PMBus digital management (XL750)
- Power density up to >15 W/cu in
- Active current sharing and built-in ORing MOSFET
- Up to 94% efficiency
- Convection options up to 350W (XL750)

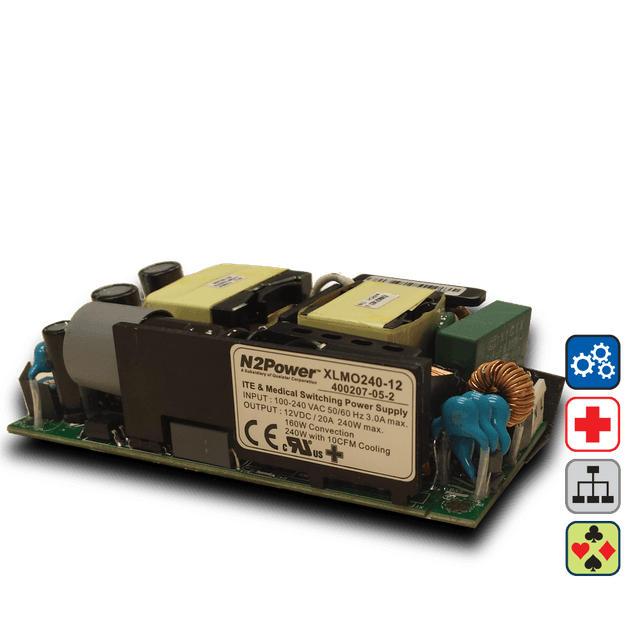

XLM240 AC-DC
Medical240W | Up to 94%
Medical-grade 240W with EN 60601 certification.
View specifications >

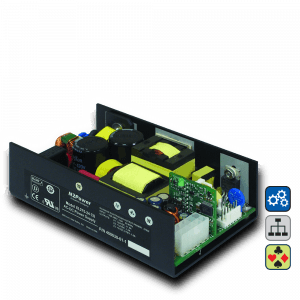

XL275 AC-DC
275W | Up to 91%
275W with PMBus option and >12 W/cu in density.
View specifications >

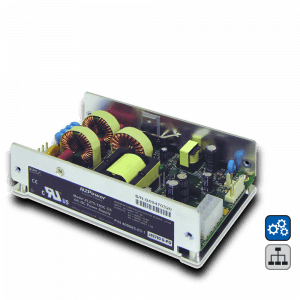

XL275 DC-DC
275W | Up to 91%
275W DC-DC with PMBus and parallelable outputs.
View specifications >

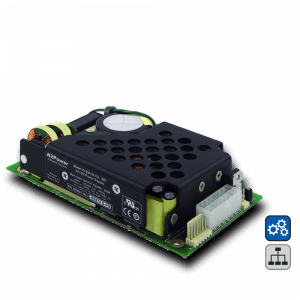

XL280 AC-DC
280W | Up to 90%
280W with PoE compliance and >13 W/cu in.
View specifications >
XL375 AC-DC
375W | Up to 93%
375W with 260W convection and >15 W/cu in.
View specifications >
XLM500 AC-DC
Medical500W | Up to 94%
Medical-grade 500W with EN 60601 and 62368 dual certification.
View specifications >

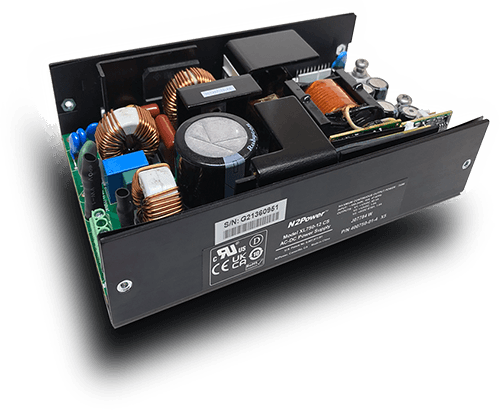

XL750 AC-DC
750W | Up to 94%
750W flagship with I2C/PMBus digital management.
View specifications >
Quick reference
Full product comparison.
Specifications reflect published highlights. Confirm final configuration with current datasheets.
| Model | Watts | Efficiency | Dimensions | Input | Output | Temp | MTBF |
|---|---|---|---|---|---|---|---|
| ML40 AC-DCMed | 40W | Up to 93.5% | 2.00" x 3.00" x 1.16" | 85-264 VAC | 5-53 V (adjustable +/-10%) | -40 to +85 C | 3,010,000 hours |
| XL40 AC-DC | 40W | Up to 93% | 2.00" x 3.00" x 1.16" | 85-264 VAC | 5-53 V (adjustable) | -40 to +85 C | 3,010,000 hours |
| ML65 AC-DCMed | 65W | Up to 93.5% | 2.00" x 3.00" x 1.16" | 85-264 VAC | 5-53 V (adjustable +/-10%) | -40 to +85 C | 1,494,000 hours |
| XL65 AC-DC | 65W | Up to 93.5% | 2.00" x 3.00" x 1.16" | 85-264 VAC | 5-53 V (adjustable +/-10%) | -40 to +80 C | 1,494,000 hours |
| ML100 AC-DCMed | 100W | Up to 92% | 2.00" x 3.00" x 1.16" | 85-264 VAC | 12-48 V (adjustable +/-10%) | -40 to +85 C | 790,000 hours |
| XL100 AC-DC | 100W | Up to 92% | 2.00" x 3.00" x 1.16" | 85-264 VAC | 12-48 V | -40 to +80 C | 790,300 hours |
| XR125 AC-DC | 125W | Up to 91% | 3.00" x 5.00" x 1.32" | 90-264 VAC | 12-48 V | -25 to +70 C | >600,000 hours |
| XS125 AC-DC | 125W | Up to 92% | 2.00" x 3.00" x 1.16" | 85-264 VAC | Adjustable (-10%) | -40 to +85 C | >790,000 hours |
| XR125 RE AC-DC | 125W | Up to 91% | 3.00" x 5.00" x 1.32" | 90-264 VAC | 12-48 V | -25 to +70 C | >600,000 hours |
| XR ATX AC-DC | 125-160W | Up to 84% | ATX standard | 90-264 VAC | ATX outputs | -25 to +70 C | >200,000 hours |
| XR160 RE AC-DC | 160W | Up to 91% | 3.00" x 5.00" x 1.32" | 90-264 VAC | 12-48 V | -25 to +70 C | >600,000 hours |
| XR160 AC-DC | 160W | Up to 91% | 3.00" x 5.00" x 1.32" | 90-264 VAC | 12-56 V | -25 to +70 C | >600,000 hours |
| XL180 AC-DC | 180W | Up to 94% | 2.00" x 3.00" x 1.24" | 85-264 VAC | Adjustable +/-8% | -40 to +85 C | >1,145,000 hours |
| XLM240 AC-DCMed | 240W | Up to 94% | 3.00" x 5.00" x 1.47" | 90-264 VAC | 12-48 V | -30 to +70 C | >250,000 hours |
| XL275 AC-DC | 275W | Up to 91% | 3.30" x 5.00" | 90-264 VAC | 12-56 V | -25 to +70 C | 645,362 hours |
| XL275 DC-DC | 275W | Up to 91% | 3.30" x 5.00" | 36-75 VDC | 12-56 V | -25 to +70 C | 645,362 hours |
| XL280 AC-DC | 280W | Up to 90% | 3.00" x 5.30" | 90-264 VAC | 12-56 V | -25 to +70 C | 546,464 hours |
| XL375 AC-DC | 375W | Up to 93% | 3.30" x 5.00" | 90-264 VAC | 12-56 V | -25 to +70 C | 376,644 hours |
| XLM500 AC-DCMed | 500W | Up to 94% | 3.00" x 5.00" x 1.61" | 90-264 VAC | 12-48 V | -30 to +70 C | >160,000 hours |
| XL750 AC-DC | 750W | Up to 94% | 4.00" x 7.00" x 1.65" (1.85" with enclosure) | 90-264 VAC | 12-56 V | -30 to +70 C | >250,000 hours |
Next step
Request a sample, datasheet, or custom configuration.
N2Power offers free samples for qualified OEM evaluations. OPSM custom assembly services are available for modified standard and fully custom power solutions.
