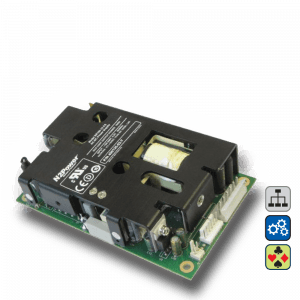

XR160 AC-DC
160W AC-DC power supply with active PFC, up to 91% efficiency, and 8.5 W/cu in power density in a compact 3" x 5" footprint. Features optional built-in ORing MOSFET for N+1 redundancy and PoE-compliant output options.
Key specifications
XR160 AC-DC at a glance.
Output power
160W
Efficiency
Up to 91%
Dimensions
3.00" x 5.00" x 1.32"
MTBF
>600,000 hours
Electrical specifications
Safety and environmental
Warranty
Three-year standard warranty
RoHS compliant. Confirm certifications with current datasheets.
Features
What sets the XR160 AC-DC apart.
Active PFC (90-264 VAC)
Built-in ORing for N+1 redundancy (optional)
Single-wire current sharing
PoE compliant (54V and 56V models)
All outputs may be paralleled
Active inrush current protection
Remote on/off capability
Applications
Designed for these markets.
