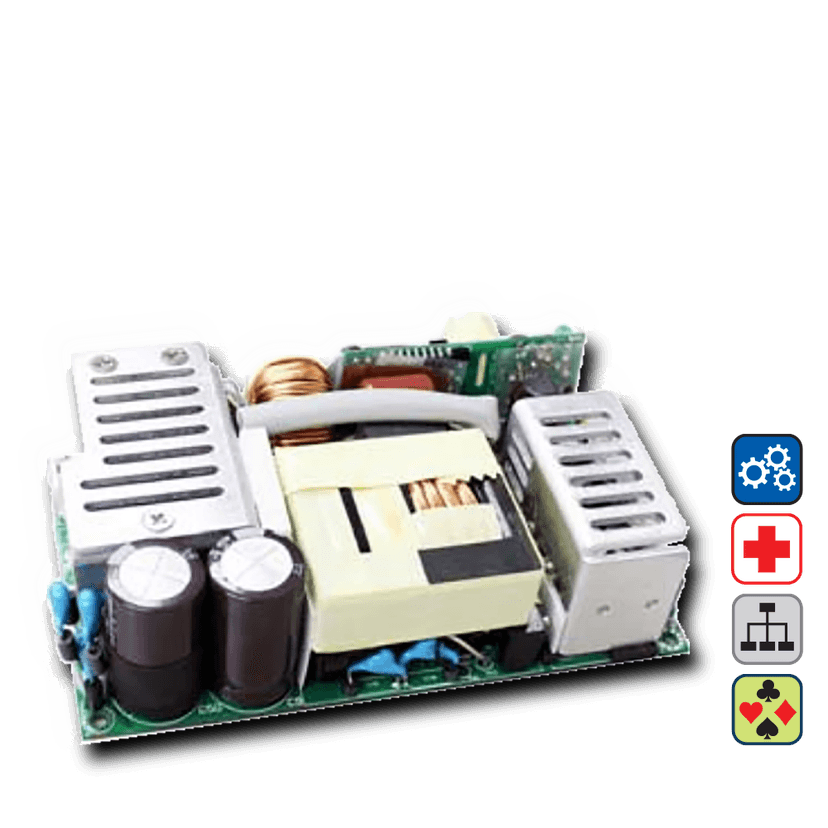

XLM500 AC-DC
500W medical-grade AC-DC power supply with up to 94% efficiency, 2xMOPP isolation (4,000 VAC), and dual EN 60601 / EN 62368 certification. Delivers 240W convection or 500W with 30 CFM fan. Suitable for BF patient-contact applications.
Key specifications
XLM500 AC-DC at a glance.
Output power
500W
Efficiency
Up to 94%
Dimensions
3.00" x 5.00" x 1.61"
MTBF
>160,000 hours
Electrical specifications
Safety and environmental
Warranty
Three-year standard warranty
RoHS compliant. Confirm certifications with current datasheets.
Documents
Datasheets & product specs.
Datasheets
Features
What sets the XLM500 AC-DC apart.
UL/IEC/EN 60601 3.1 edition (medical)
UL/IEC/EN 62368-1 (ITE)
EN 60601-1-2: 2015 (4th edition EMC)
2xMOPP isolation (4,000 VAC)
Suitable for BF patient-contact applications
Up to 94% efficiency
Built-in 12V / 0.3A fan supply
240W convection / 500W with fan
5V / 1A standby (with fan) or 0.4A (without)
Applications
Designed for these markets.
