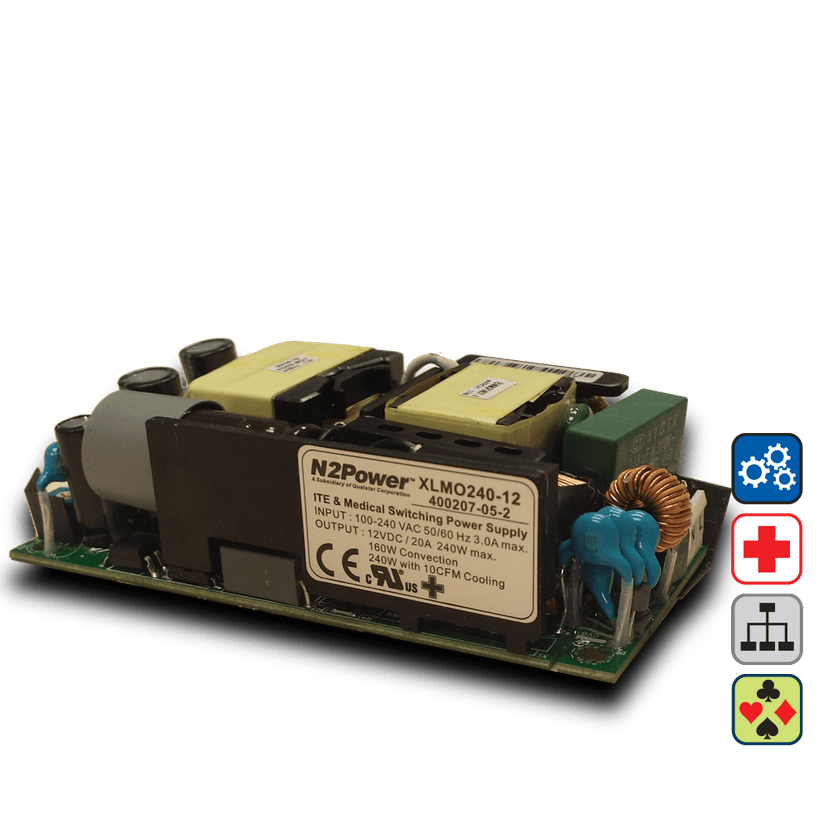

XLM240 AC-DC
240W medical-grade AC-DC power supply with up to 94% efficiency, 2xMOPP isolation (4,000 VAC), and EN 60601-1-2 4th edition EMC certification. Delivers 160W with convection cooling or 240W with fan assist. Suitable for BF patient-contact applications.
Key specifications
XLM240 AC-DC at a glance.
Output power
240W
Efficiency
Up to 94%
Dimensions
3.00" x 5.00" x 1.47"
MTBF
>250,000 hours
Electrical specifications
Safety and environmental
Warranty
Three-year standard warranty
RoHS compliant. Confirm certifications with current datasheets.
Documents
Datasheets & product specs.
Datasheets
Product specs
Features
What sets the XLM240 AC-DC apart.
EN 60601-1-2: 2015 (4th edition) EMC certified
2xMOPP isolation (4,000 VAC input-to-output)
Suitable for BF patient-contact applications
Up to 94% efficiency
Built-in 12V / 0.5A fan supply
160W convection cooled / 240W with fan
Class I and Class II configurations
<0.5 W no-load input power
Applications
Designed for these markets.
