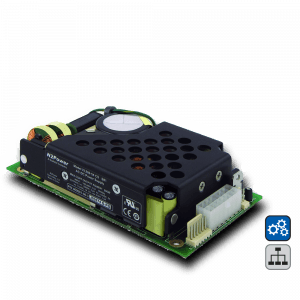

XL280 AC-DC
280W AC-DC power supply with active PFC, up to 90% efficiency, and over 13 W/cu in power density. Features 5V standby, 12V auxiliary, remote on/off, and PoE-compliant output options (54V and 56V models).
Key specifications
XL280 AC-DC at a glance.
Output power
280W
Efficiency
Up to 90%
Dimensions
3.00" x 5.30"
MTBF
546,464 hours
Electrical specifications
Safety and environmental
Warranty
Three-year standard warranty
RoHS compliant. Confirm certifications with current datasheets.
Documents
Datasheets & product specs.
Datasheets
Features
What sets the XL280 AC-DC apart.
Active PFC (90-264 VAC)
PoE compliant (54V and 56V models)
5V standby output (1A)
12V auxiliary output (1A)
All outputs may be paralleled
Active current sharing for N+1 redundancy
Active inrush current protection
Remote on/off capability
Applications
Designed for these markets.
