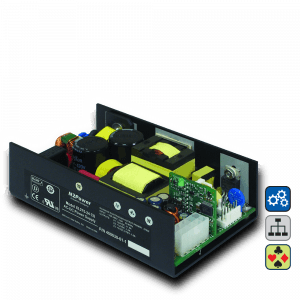

XL275 AC-DC
275W AC-DC power supply with over 12 W/cu in power density, active PFC, and up to 91% efficiency. Features built-in ORing MOSFET for N+1 redundancy, active inrush protection, optional PMBus interface, and parallelable outputs.
Key specifications
XL275 AC-DC at a glance.
Output power
275W
Efficiency
Up to 91%
Dimensions
3.30" x 5.00"
MTBF
645,362 hours
Electrical specifications
Safety and environmental
Warranty
Three-year standard warranty
RoHS compliant. Confirm certifications with current datasheets.
Documents
Datasheets & product specs.
Datasheets
Product specs
Features
What sets the XL275 AC-DC apart.
Active PFC (90-264 VAC)
Built-in ORing MOSFET for N+1 redundancy
All outputs may be paralleled
Active inrush current protection
Remote on/off capability
5W 5V standby supply
PMBus interface option for digital management
Single-wire current sharing
Power density >12 W/cu in
